In the demanding world of electrical and thermal engineering, the quest for reliable, high-performance insulating materials is never-ending. Among the top contenders, Mica Sheet stands out as a naturally occurring mineral-based product renowned for its exceptional properties. For decades, industries ranging from heavy-duty appliance manufacturing to aerospace have relied on mica sheets for critical applications. As a leading supplier, Kaxite is dedicated to providing premium-grade mica sheets, engineered to meet the most stringent specifications and deliver unparalleled performance and longevity in your applications.
Mica sheet is a fabricated insulation material produced from mica splittings or mica paper bonded with a suitable binder. The natural structure of mica gives it a unique combination of properties that synthetic materials often struggle to match. Its layered silicate composition provides outstanding dielectric strength, thermal stability, and chemical resistance.
The primary advantages of using Kaxite Mica Sheets include:
Kaxite offers a comprehensive range of mica sheet products, each tailored for specific performance criteria. Our sheets are manufactured under strict quality control to ensure consistency and reliability. Below is a detailed breakdown of our standard product specifications and available grades.
| Property | Test Method / Condition | Typical Value Range | Units |
|---|---|---|---|
| Thickness | Standard Tolerance | 0.1mm - 5.0mm (±5-10%) | mm |
| Density | At 25°C | 1.8 - 2.4 | g/cm³ |
| Continuous Operating Temperature | Long-term, in air | 500°C - 900°C | °C |
| Dielectric Strength | At 25°C, 50Hz | 15 - 40 | kV/mm |
| Volume Resistivity | At 25°C | 1x10^12 - 1x10^15 | Ω·cm |
| Tensile Strength | Machine Direction | 80 - 150 | N/mm² |
| Thermal Conductivity | At 400°C | 0.4 - 0.7 | W/(m·K) |
| Grade Code | Binder Type | Max. Continuous Temp. | Key Characteristics | Typical Applications |
|---|---|---|---|---|
| KX-MH (Hard) | Silicone Resin | 600°C | High rigidity, excellent punchability, good electricals. | Heating elements, commutator segment insulation, washers. |

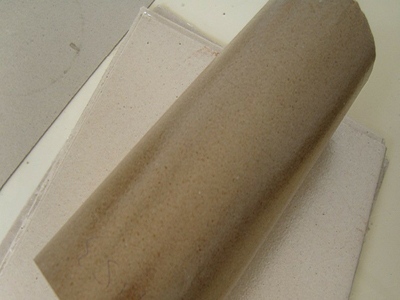

| KX-MS (Soft/Flexible) | Organic (e.g., Shellac) | 500°C | Flexible, can be wound and formed. | Wrapping cables & conductors, flexible heaters, motor slot liners. |
| KX-MHPA | Phlogopite Mica, Silicate | 900°C | Superior heat resistance, lower cost than muscovite for high-temp. | Foundry and furnace viewing windows, high-temperature gaskets. |
| KX-MMH (Muscovite) | Inorganic Silicate | 850°C | Highest dielectric strength, superior thermal & chemical stability. | High-voltage equipment, aerospace, critical power generation components. |
| KX-MCP (Composite) | Glass Cloth / Mica Paper | 700°C | Enhanced mechanical strength, moisture resistant, VPI compatible. | High-voltage stator coil insulation, traction motors, large generators. |
Q: What is the main difference between Muscovite and Phlogopite mica sheets?

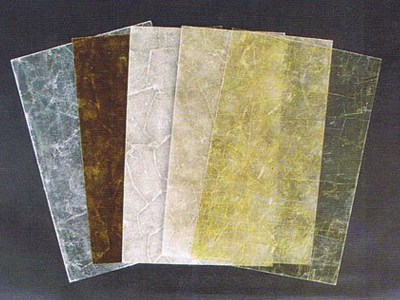

A: Muscovite (clear/white) and Phlogopite (amber/brown) are the two primary types. Muscovite offers superior dielectric strength, higher thermal stability (up to ~850°C), and better resistance to acids. Phlogopite has a slightly higher continuous temperature limit (up to ~900°C) and offers better resistance to alkali environments, often at a more economical price point. Kaxite provides both types, and our technical team can advise on the best choice for your specific thermal and chemical exposure.
Q: Can your mica sheets be machined or fabricated into custom shapes?
A: Absolutely. Kaxite mica sheets, particularly our hard-grade KX-MH, are specifically designed for fabrication. They can be accurately punched, stamped, drilled, laser-cut, or CNC machined into precise shapes such as washers, gaskets, tubes, and complex insulation components. We offer standard sheets and can also supply pre-fabricated parts to your drawings, saving you production time and material waste.
Q: How does the binder affect the performance of the mica sheet?
A: The binder is critical as it holds the mica splittings or paper together. Silicone resin binders offer a good balance of flexibility, thermal resistance (~600°C), and dielectric properties. Organic binders (like shellac) provide excellent flexibility but lower thermal limits (~500°C). Inorganic silicate binders are used for the highest temperature grades (850°C+), offering superb thermal stability but resulting in a more rigid sheet. Kaxite selects binders that optimize performance for the intended application.
Q: Is mica sheet resistant to moisture and harsh chemicals?
A: Mica itself is highly resistant to water, oils, most acids, and solvents. However, the overall moisture and chemical resistance of the sheet can be influenced by the binder. Kaxite’s composite grades (like KX-MCP) with glass cloth backing offer excellent moisture resistance. For applications involving severe chemical exposure, we recommend specifying the environment so we can recommend a grade with the most compatible binder system.
Q: What are the key considerations when selecting a mica sheet for a heating element?
A: For heating elements, the primary factors are continuous operating temperature, dielectric strength at that temperature, and machinability. The sheet must reliably insulate the resistive wire from the sheath at high temperatures. Kaxite’s KX-MH (hard) grade is a popular choice for its excellent punchability for forming precise collars and its stable electrical properties up to 600°C. For higher temperatures, our muscovite or phlogopite grades would be selected.
Q: How do I ensure I am getting a consistent, high-quality mica sheet?
A: Consistency comes from rigorous raw material selection and controlled manufacturing processes. Kaxite ensures quality by sourcing high-purity mica, using precise binder application, and curing under controlled conditions. Every batch undergoes testing for key parameters like thickness, density, and dielectric strength. Requesting material data sheets and certificates of conformance is standard practice, which Kaxite readily provides to our clients.
Q: Can mica sheet be used as a thermal insulator as well as an electrical insulator?
A: Yes, it serves a dual function exceptionally well. While its primary function is often electrical insulation, mica sheet has a relatively low thermal conductivity, meaning it also acts as an effective thermal barrier. This makes it ideal for applications like insulating heat from sensitive components or containing heat within a system, all while providing critical electrical isolation.
Q: Does Kaxite offer fire-rated or certified mica sheet products?
A: Yes. Mica is inherently non-combustible (meeting the criteria of ASTM E136). Many Kaxite mica sheet grades comply with international fire and smoke safety standards such as UL 94 V-0 and can be tested for specific railway, marine, or building code certifications (like NFP, EN, IEC) upon request. It is crucial to specify your required certification at the inquiry stage.
