Ceramic fiber is a high-performance, lightweight insulating material renowned for its exceptional resistance to extreme temperatures. Often referred to as refractory ceramic fiber (RCF) or alumina-silicate wool, it is manufactured by melting a combination of high-purity alumina and silica at temperatures exceeding 1700°C, then spinning or blowing the molten material into fine, flexible fibers. The result is a versatile material capable of withstanding continuous use from approximately 1260°C (2300°F) to temperatures exceeding 1600°C (2912°F) for certain high-grade compositions, making it indispensable in industries where thermal management is critical. Unlike traditional brick or castable refractories, ceramic fiber products offer superior thermal shock resistance, minimal heat storage, and excellent chemical stability, providing efficient insulation, energy savings, and enhanced process control.
The core advantages of ceramic fiber stem from its unique physical properties. Its low thermal conductivity ensures minimal heat transfer, its low heat capacity allows for rapid heat-up and cool-down cycles without cracking, and its resilience against most corrosive chemicals ensures longevity in harsh environments.
At Kaxite, we engineer our ceramic fiber products to meet the most demanding industrial applications. Our rigorous quality control and advanced manufacturing processes ensure consistent performance, reliability, and safety. Below is a detailed breakdown of our standard product parameters and specifications.
| Product Form | Grade | Classification Temp. | Density Range | Key Features & Typical Applications |
|---|---|---|---|---|

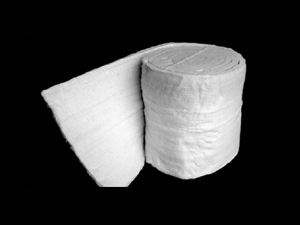

| Blanket (Felt) | Kaxite Standard | 1260°C / 2300°F | 64 - 128 kg/m³ | Flexible, resilient. Furnace lining expansion joints, pipe wrapping, backup insulation. |
| Blanket (Felt) | Kaxite High-Temp | 1430°C / 2600°F | 96 - 128 kg/m³ | Superior shrinkage resistance. Forging furnaces, petrochemical heaters, high-temp kilns. |

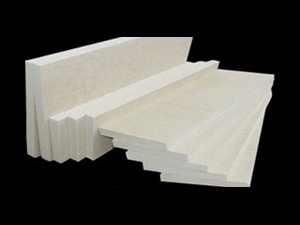

| Board & Veneer | Kaxite Rigid | 1260°C - 1430°C | 240 - 320 kg/m³ | Rigid, excellent strength. Hot face lining in furnaces, fire protection, kiln car tops. |
| Module | Kaxite Folded/Stacked | 1260°C - 1600°C | 192 - 240 kg/m³ | Pre-assembled, fast installation. Large industrial furnace walls and roofs. |

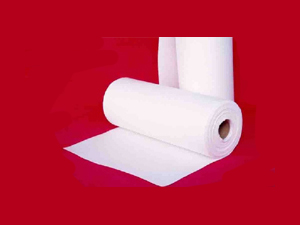

| Paper & Felts | Kaxite Thin-Gauge | 1260°C | 180 - 250 kg/m³ | Thin, flexible sheets. Gasketing, wrapping small parts, high-temp sealing. |

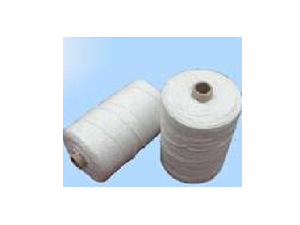

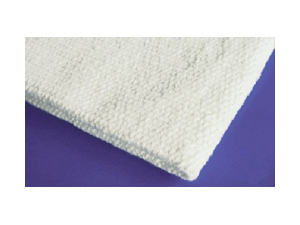

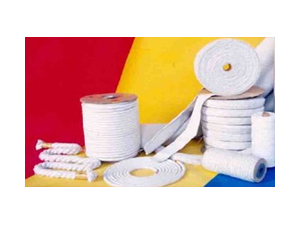

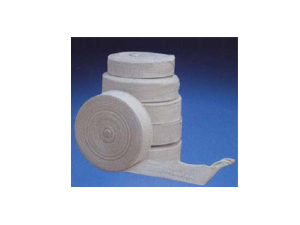

| Textiles (Rope, Cloth, Tape) | Kaxite Woven | 1260°C | Varies by form | Reinforced with wire or glass filament. Expansion joint packing, curtain systems, flexible seals. |
| Vacuum-Formed Shapes | Kaxite Custom | 1260°C - 1600°C | 300 - 400 kg/m³ | Custom-molded to precise dimensions. Burner blocks, thermocouple tubes, special fixtures. |
Q: What is the primary difference between ceramic fiber blanket, board, and module?
A: The primary difference lies in form, density, and application method. Blankets are flexible, low-density felts used for wrapping, lining, and filling irregular spaces. Boards are rigid, flat, high-density panels cut to size, offering greater structural integrity for hot-face linings. Modules are pre-assembled, folded blankets mounted on a metal anchor system, designed for rapid and consistent installation of large furnace walls and roofs, reducing labor time significantly.
Q: How do I select the correct temperature grade for my application?
A: Always choose a grade with a classification temperature at least 100-150°C above your process's maximum continuous operating temperature. For example, for a furnace operating at 1150°C, a 1260°C grade is the minimum, but a 1430°C grade would offer a greater safety margin and longer service life. Consider peak temperatures, thermal cycling frequency, and the presence of chemical vapors. Kaxite technical support can provide precise recommendations based on your specific conditions.
Q: Is ceramic fiber safe to handle? What precautions are necessary?
A: Like many fine fibrous materials, ceramic fiber requires careful handling to minimize airborne dust. During installation or cutting, it is recommended to wear appropriate personal protective equipment (PPE) such as an OSHA-approved dust mask (NIOSH N95 or better), safety glasses, gloves, and long sleeves. Good ventilation or local exhaust is advised. Once installed in a high-temperature application, the fiber undergoes a process called "devitrification," where it converts to a more crystalline, less fibrous structure, which significantly reduces its bio-persistence.
Q: Can ceramic fiber get wet? What happens if it does?
A: While ceramic fiber itself is not hygroscopic and will dry out without permanent loss of insulating properties, getting it wet is not recommended. Water can temporarily increase its thermal conductivity and, more importantly, make the material very difficult to handle as it becomes limp and heavy. If wet during installation, it must be allowed to dry thoroughly before being subjected to high temperatures to avoid steam spalling. For outdoor applications, Kaxite offers weather-resistant coatings and veneers.
Q: How is ceramic fiber installed in a furnace or kiln?
A: Installation method depends on the product form. Blankets are often layered and secured with high-temperature metal studs or washers. Boards are cut and fitted, then anchored with special refractory adhesives or mechanical fasteners. Modules are the fastest: they are simply pushed onto pre-welded alloy anchors in a brickwork-like pattern. Proper compression and sealing of joints are critical to prevent heat leakage. Kaxite provides detailed installation guides and anchors compatible with our product range.
Q: What is "shot content" in ceramic fiber, and why does it matter?
A: "Shot" refers to the small, unfiberized particles (beads) that are a byproduct of the spinning/blowing process. A lower shot content indicates a higher-quality, more fibrous product. High shot content can increase thermal conductivity slightly, reduce resilience, and create more dust during handling. Kaxite products are manufactured with strict controls to minimize shot content, ensuring superior flexibility, lower density for equivalent insulating value, and cleaner handling.
Q: How does Kaxite ceramic fiber compare to traditional firebrick insulation?
A: Kaxite ceramic fiber offers distinct advantages: It is significantly lighter (1/10th to 1/20th the weight), leading to simpler support structures. It has much lower thermal conductivity and heat storage, meaning furnaces heat up faster, use less energy, and allow for more precise temperature control. Its excellent thermal shock resistance eliminates cracking common in bricks. However, for applications with extreme mechanical abrasion or slag erosion, a dense brick or castable may still be required, often in combination with ceramic fiber as a backup layer.
Q: Can ceramic fiber be used in applications with direct flame impingement or high gas velocity?
A: Standard ceramic fiber blankets are not suitable for direct flame impingement, which can cause fiber degradation and erosion. For such applications, Kaxite offers hardened face coatings, high-density vacuum-formed shapes, or rigid boards designed to withstand direct flame and particle erosion. In high-velocity gas streams, a protective layer or coating is essential to prevent fiber blow-out.
