In industrial piping systems, managing electrical currents and preventing corrosion is not merely an operational consideration—it’s a critical safety and longevity imperative. Stray electrical currents, galvanic corrosion, and cathodic protection interference can silently compromise pipeline integrity, leading to catastrophic failures, unplanned downtime, and significant financial loss. The strategic installation of a high-quality Flange Insulation Gasket Kit is the definitive engineering solution to these pervasive challenges. At Kaxite, with decades of specialized material science and engineering expertise, we design and manufacture Flange Insulation Gasket Kits that set the industry benchmark for reliability, durability, and precision.

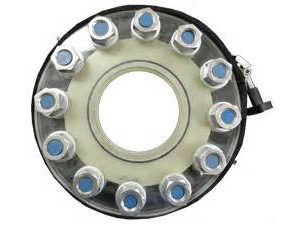

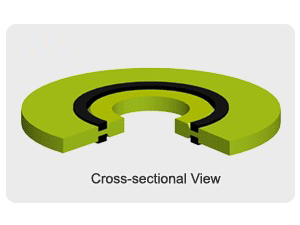

A Kaxite Flange Insulation Kit is a comprehensive, pre-engineered assembly designed to electrically isolate adjoining pipeline flanges. It creates a barrier that blocks the flow of electrical current while maintaining a perfect pressure seal, effectively mitigating corrosion and protecting sensitive equipment. Our kits are meticulously crafted for a perfect fit and long-term performance in the most demanding environments, from offshore platforms and chemical processing plants to water treatment facilities and power generation stations.
Every Kaxite Flange Insulation Gasket Kit is a system of integrated components, each playing a vital role. We do not compromise on material selection, ensuring each part meets stringent standards for electrical resistance, mechanical strength, and chemical stability.
| Component | Standard Material | Key Properties | Typical Temperature Range | Dielectric Strength (kV/mm) |
|---|---|---|---|---|
| Full-Face Gasket | Glass Reinforced Epoxy (G10/FR4) | High mechanical strength, excellent electrical insulation, low moisture absorption. | -60°F to 250°F (-51°C to 121°C) | ≥ 20 |
| Inner-Bolt Circle Gasket | PTFE (Virgin or Glass Filled) | Outstanding chemical resistance, wide temp range, low friction. | -450°F to 500°F (-268°C to 260°C) | ≥ 18 |
| Bolt Sleeves & Washers | Polyamide 6.6 (Nylon) or PEEK | High tensile strength, good fatigue resistance, excellent wear properties. | -40°F to 220°F (-40°C to 105°C) for Nylon; up to 480°F (250°C) for PEEK | ≥ 15 |
To ensure perfect system integration and performance, Kaxite Flange Insulation Kits are manufactured to exact customer specifications. Providing accurate flange data is essential.
| Flange Size (NPS) | Pressure Class | Kit Type (Kaxite Model Prefix) | Standard Gasket Thickness | Typical Bolt Size | Dielectric Test Voltage (Minimum) |
|---|---|---|---|---|---|
| 2" to 12" | 150, 300, 600 | FIG-S (Standard Epoxy) | 1/8" (3.2 mm) | 3/4" to 1-1/4" | 1000 V AC |
| 14" to 24" | 150, 300 | FIG-H (High-Pressure/High-Temp) | 1/8" or 1/4" (3.2 or 6.4 mm) | 1" to 1-1/2" | 1500 V AC |
| 26" and larger | 150 | FIG-C (Custom Composite) | Custom | Custom | 2000 V AC |
| All (RTJ Spec.) | 300 to 2500 | FIG-R (RTJ Specialty) | Per ASME B16.20 | Per Flange Spec. | 1000 V AC |
Q: What is the primary purpose of a Flange Insulation Gasket Kit?
A: The primary purpose is to electrically isolate two metal flanges in a piping system. This prevents the flow of stray electrical currents, which can cause electrolytic corrosion, and isolates different sections of pipe for effective cathodic protection. It stops galvanic corrosion between dissimilar metals while maintaining a pressure-tight seal.
Q: When is a Flange Insulation Kit absolutely necessary?
A: It is critical in several scenarios: 1) Where pipelines enter or exit cathodic protection zones to isolate the protected section. 2) In systems with stray DC currents, such as near railways or sub-stations. 3) For connecting pipelines made of dissimilar metals (e.g., carbon steel to stainless steel). 4) In hazardous areas where spark prevention is vital. 5) To protect sensitive equipment like flow meters and turbines from damaging ground currents.
Q: What is the difference between Single and Double Isolation Kits?
A: A Single Isolation Kit places insulating components (gasket, sleeves, washers) only between one flange face and the mating equipment or pipe. It isolates that specific flange. A Double Isolation Kit provides a complete insulation barrier between both flanges, using insulating gaskets, sleeves, and washers on both sides. Double isolation is used for maximum security, such as isolating a pipeline from a grounded tank or vessel completely.
Q: Can Kaxite kits handle high temperatures and pressures like standard gaskets?
A: Absolutely. Kaxite engineers kits for the specific operating conditions. Our standard glass-reinforced epoxy gaskets are rated for pressures up to ASME Class 600 and temperatures to 250°F. For more extreme services, we offer PTFE-based kits for superior chemical resistance and wider temperature ranges, and PEEK components for high-temperature applications exceeding 400°F. The mechanical strength is designed to withstand the bolt loads specified for the flange class.
Q: How do I ensure the insulation integrity is maintained during and after installation?
A: Proper installation is key. Follow these Kaxite guidelines: 1) Ensure flange faces are clean, smooth, and free of burrs. 2) Use only undamaged components from the kit. 3) Hand-tighten all nuts to align the gasket, then use a cross-torque pattern to achieve the specified bolt torque in incremental steps. 4) Avoid over-torquing, which can crush or crack insulating components. 5) After installation, the insulation resistance should be verified with a megohmmeter (e.g., 1000V test). Regular inspection as part of maintenance schedules is also recommended.
Q: Are Kaxite Flange Insulation Kits reusable?
A: Generally, they are not designed for reuse. During torquing, the insulating gasket and washers compress to form a seal. Removing the flange breaks this seal and may cause micro-fractures or deformation in the polymer components, compromising dielectric strength and sealing performance upon re-assembly. Kaxite always recommends using a new, certified kit for any flange disconnection and reconnection to guarantee system integrity.
Q: How do I order the correct Kaxite kit for my application?
A: Provide the complete flange specifications as outlined in the "Technical Parameters" section. This includes flange size, standard, pressure class, facing type, bolt details, and service conditions (fluid, temperature, pressure). For Ring Type Joint (RTJ) flanges, specifying the ring number (e.g., R45) is crucial. Our engineering team can assist in selecting the optimal material and kit configuration for your specific needs, including custom sizes and non-standard configurations.
