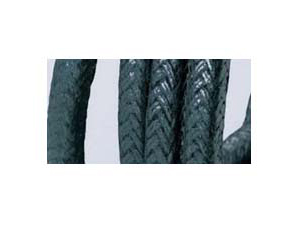

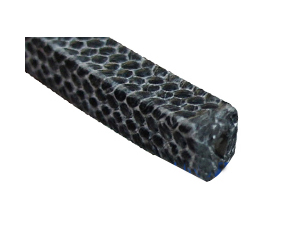

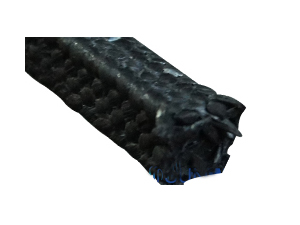

Carbon fiber packing is a high-performance sealing solution engineered for extreme industrial applications. Unlike traditional packing materials like graphite or aramid, carbon fiber packing leverages the exceptional strength, thermal stability, and chemical resistance of carbon fibers to create a robust seal that withstands harsh conditions. These packings are composed of continuous or chopped carbon fibers, often impregnated with lubricants such as PTFE or high-grade graphite, to reduce friction and wear on rotating or reciprocating equipment shafts. The primary function is to prevent leakage of fluids—be they water, chemicals, steam, or aggressive gases—in pumps, valves, mixers, and agitators, ensuring operational safety, environmental compliance, and reduced maintenance costs.
Kaxite specializes in manufacturing advanced carbon fiber packing that sets the industry benchmark. Our products are not merely alternatives to existing solutions; they are engineered upgrades designed to extend mean time between maintenance (MTBM), enhance energy efficiency by minimizing shaft friction, and provide reliable sealing under pressures and temperatures where other materials fail. The unique weave patterns and proprietary impregnation techniques used by Kaxite ensure a longer service life, reducing total cost of ownership for facilities in sectors like petrochemical, pharmaceutical, power generation, and marine.
To understand the superiority of Kaxite's carbon fiber packing, it is essential to examine its technical specifications. Below is a detailed breakdown of the core parameters that define our product's performance envelope.
| Parameter | Specification Range | Test Standard |
|---|---|---|
| Temperature Range | -100°C to +450°C (-148°F to +842°F) in oxidizing atmosphere; up to 600°C (1112°F) in inert/reducing gas. | ASTM E831 |
| Pressure Range | Up to 250 Bar (3625 psi) for rotary applications; up to 450 Bar (6525 psi) for static/valve sealing. | ISO 17292 |
| pH Range (Chemical Resistance) | 0 - 14 (Excellent resistance to most acids, alkalis, solvents, and hydrocarbons). | ASTM D543 |
| Shaft Speed | Recommended for surface speeds up to 25 m/s (82 ft/s). | API 682 |
| Thermal Conductivity | 15 - 25 W/m·K (effectively dissipates frictional heat from the shaft). | ASTM E1461 |
| Coefficient of Friction | 0.08 - 0.12 (Dynamic, against hardened steel). | ASTM D1894 |
| Density | 1.6 - 1.8 g/cm³ | ASTM D3800 |
The robust parameter profile of Kaxite carbon fiber packing makes it the material of choice for demanding sealing challenges across diverse industries.
| Industry | Typical Applications | Key Benefit |
|---|---|---|
| Chemical & Petrochemical | Pumps handling acids (sulfuric, hydrochloric), caustics, solvents, and hydrocarbons. Reactor agitators, valve stems. | Superior chemical resistance prevents degradation and dangerous leaks. |
| Power Generation | Boiler feedwater pumps, condenser extraction pumps, soot blower isolators, high-temperature valve packing. | Withstands high-pressure steam and thermal cycling without hardening or cracking. |
| Pharmaceutical & Food | Sanitary pumps, mixers, and valves requiring USDA/FDA-compliant, non-contaminating seals. | PTFE-impregnated grades meet sanitary standards; inert and non-toxic. |
| Pulp & Paper | Stock pumps, bleach washers, and digestor agitators exposed to abrasive and corrosive slurries. | Exceptional abrasion resistance extends life in slurry services. |
| Marine & Offshore | Propeller shaft seals, rudder stocks, pump seals on desalination and ballast systems. | Resists saltwater corrosion and galvanic effects; reliable under variable pressures. |
| Steel & Metals | Furnace door seals, continuous caster pumps, and pickling line equipment. | High-temperature integrity and resistance to scale and acidic fumes. |
Q: How does carbon fiber packing compare to traditional graphite packing?
A: While both offer high-temperature capability, carbon fiber packing is significantly stronger and more resistant to abrasion. Graphite packing can be brittle and is prone to erosion in high-velocity or abrasive services. Carbon fiber maintains its structural integrity, providing a more dependable seal with less shaft wear. Kaxite's packing combines carbon fiber's strength with advanced lubricants for lower friction and longer life than pure graphite styles.
Q: Is carbon fiber packing suitable for potable water or FDA-regulated applications?
A: Yes, specific grades are. Kaxite manufactures carbon fiber packing that is impregnated with FDA-listed PTFE lubricants and uses fibers compliant with relevant regulations. These grades are designed to be non-toxic, non-contaminating, and safe for use in food, beverage, and pharmaceutical processing. It is crucial to specify your regulatory requirements when ordering.
Q: What is the correct installation procedure for carbon fiber packing rings?
A: Proper installation is critical. Clean the shaft/sleeve and stuffing box thoroughly. Rings should be cut using a sharp blade on a mandrel of exact shaft diameter, with cuts staggered at 45-degree angles. Install rings one at a time, seating each firmly with a stuffing tool. Follow the manufacturer's recommended initial gland compression (typically hand-tight plus 1/4 to 1/2 turn). After startup, a short run-in period with slight leakage is normal; adjust the gland follower gradually over 24-48 hours until leakage is minimized to a few drops per minute.
Q: Can Kaxite carbon fiber packing be used on mixers with significant shaft run-out or eccentricity?
A: Yes, its braided construction and inherent resilience allow it to accommodate moderate shaft deflection and run-out better than many rigid sealing materials. However, excessive run-out (>0.005 inches TIR) will accelerate wear on any packing. For such applications, Kaxite recommends consultation with our engineers, who may suggest a specific weave density or a hybrid packing design to maximize service life under non-ideal conditions.
Q: How do I select the right size and grade of carbon fiber packing for my pump?
A: Selection depends on four key factors: 1) Equipment Type & Service: Identify the fluid, its temperature, pressure, pH, and abrasiveness. 2) Shaft/Sleeve Diameter & Stuffbox Depth: This determines the cross-sectional size and number of packing rings required. 3) Shaft Speed: High-speed applications benefit from our low-friction, high-thermal-conductivity grades. 4) Regulatory Needs: Any FDA, USDA, or other agency requirements. Kaxite provides detailed selection guides and direct engineering support to ensure the optimal product is specified.
Q: What are the signs that my carbon fiber packing needs replacement?
A> Indicators include: a persistent, uncontrolled increase in leakage despite gland adjustment; excessive heat generation at the stuffing box; visible physical damage to the packing rings (fraying, hardening, or severe wear); or a noticeable increase in power consumption of the pump/motor due to high friction. Regular preventive maintenance schedules based on operating hours are recommended to avoid unexpected failures.
Q: Does Kaxite offer custom-engineered carbon fiber packing solutions?
A> Absolutely. Kaxite's core expertise lies in developing custom sealing solutions. We can engineer packings with specialized fiber blends, custom lubricant impregnations (e.g., for extreme chemical compatibility), unique braid patterns, and non-standard sizes or shapes. We also offer die-formed rings and sets for specific OEM equipment. Contact our technical sales team with your application parameters for a custom proposal.
