In demanding industrial environments where reliability is non-negotiable, the choice of sealing material directly impacts operational efficiency, safety, and maintenance costs. Among the myriad of options available, PTFE Packing stands out as a premier solution for a vast array of challenging applications. Its unique molecular structure grants it a combination of properties unmatched by many traditional materials like graphite or aramid fibers.
PTFE, or polytetrafluoroethylene, is a synthetic fluoropolymer renowned for its exceptional chemical inertness, wide temperature tolerance, and extremely low coefficient of friction. When engineered into braided or filament packing styles, it creates a dynamic seal capable of withstanding aggressive media, high rotational speeds, and stringent regulatory requirements. This article delves into the technical specifications, application guidelines, and key considerations for selecting high-performance PTFE Packing, highlighting the advanced engineering behind Kaxite sealing solutions.
The superiority of PTFE-based packing stems from its intrinsic material characteristics. Understanding these benefits is crucial for specifying the correct seal.
Kaxite leverages advanced PTFE technology to offer a diversified packing portfolio. Our products are engineered with specific fillers and braiding techniques to optimize performance for distinct service conditions. Below are detailed specifications for our core PTFE Packing series.
| Kaxite Product Series | Primary Composition | Braiding Style | Density (g/cm³) | pH Range |
|---|---|---|---|---|

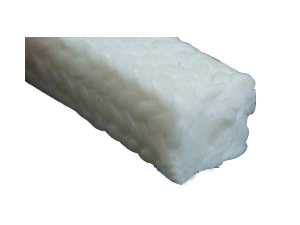

| KX-PTFE Pure | 100% Virgin PTFE Filament | Interbraided | 1.3 - 1.5 | 0 - 14 |
| KX-PTFE Graphite | PTFE Filament Impregnated with High-Purity Graphite | Square Braid | 1.6 - 1.8 | 0 - 14 (excluding strong oxidizers) |
| KX-PTFE Carbon | PTFE combined with Carbon Fillers | Twisted & Braided | 1.7 - 1.9 | 2 - 12 |
| KX-PTFE Aramid | PTFE Fiber with Aramid Reinforcement | Plied & Braided | 1.4 - 1.6 | 4 - 11 |
| Performance Parameter | KX-PTFE Pure | KX-PTFE Graphite | KX-PTFE Carbon | KX-PTFE Aramid |
|---|---|---|---|---|
| Max. Shaft Speed (m/s) | 25 | 20 | 18 | 22 |
| Max. Pressure (Bar) | 120 | 200 | 180 | 150 |
| Temperature Range (°C) | -260 to +260 | -200 to +280 | -100 to +260 | -70 to +260 |
| Primary Application Focus | Food, Pharma, Ultra-Pure Chemicals | High-Temp Valves, Aggressive Chemicals | General Purpose, Slightly Abrasive Media | High-Strength, Dynamic Pump Seals |
| Standard Sizes (Inch) | 1/8" to 1" | 3/16" to 1" | 1/4" to 1" | 3/16" to 1" |
Q: How do I choose between pure PTFE packing and PTFE packing with fillers like graphite or carbon?
A: The choice depends on your service conditions. Pure PTFE packing (like Kaxite KX-PTFE Pure) is best for applications requiring absolute chemical purity, FDA compliance, or sealing against strong oxidizers. PTFE packing with graphite filler enhances thermal conductivity, improves lubrication, and is excellent for high-temperature valve stems. Carbon-filled PTFE packing offers improved wear resistance and is suitable for general service with mildly abrasive media. Always consult the chemical compatibility chart and pressure-velocity (PV) limits for your specific application.
Q: Can PTFE packing be used on high-speed centrifugal pumps?
A: Yes, certain braided PTFE packing styles are designed for high-speed rotary service. The key is selecting a grade with appropriate lubrication (often inherent in PTFE or enhanced by fillers) and ensuring proper installation with controlled leakage for cooling and lubrication. Kaxite's KX-PTFE Aramid series, for example, provides the necessary tensile strength and thermal stability for demanding pump shafts. Always adhere to the manufacturer's maximum shaft speed recommendations.
Q: What is the correct procedure for installing PTFE packing rings?
A: Proper installation is critical. Ensure the shaft/sleeve and stuffing box are clean, smooth, and free of damage. Cut packing rings using a sharp blade and a mandrel of the exact shaft diameter; cuts should be clean and at a 45-degree angle. Stagger the ring joints by 90 degrees or more during installation. Tighten the gland follower evenly and only hand-tight initially. After startup, allow a brief run-in period, then tighten the gland gradually until the desired leakage rate (usually a few drops per minute) is achieved. Avoid over-tightening, as it causes excessive heat and wear.
Q: Does PTFE packing require a run-in or break-in period?
A: Absolutely. A controlled run-in period is essential for PTFE packing to perform optimally. After initial installation and hand-tightening, start the equipment and allow it to run for 15-30 minutes. This allows the packing to adjust, warm up, and mold itself to the shaft and stuffing box. Then, slowly and evenly tighten the gland nut in small increments (e.g., 1/6 of a turn) at 10-15 minute intervals until the leakage is reduced to a minimal, controlled flow. This process ensures proper seating and prevents overheating.
Q: Is PTFE packing compatible with strong alkalis and acids?
A: PTFE is renowned for its near-universal chemical resistance. It is compatible with virtually all aggressive chemicals, including strong acids (e.g., sulfuric, hydrochloric, nitric) and strong alkalis (e.g., sodium hydroxide, potassium hydroxide) across a wide concentration and temperature range. This makes Kaxite PTFE Packing a top choice for severe chemical service. However, it is always prudent to verify compatibility with specific media, especially in exotic or high-temperature/pressure combinations, by referring to detailed chemical resistance guides.
Q: What are the limitations of PTFE packing?
A: While exceptional, PTFE packing has considerations. First, it has a relatively high thermal expansion coefficient. Temperature cycling requires proper gland adjustment to maintain seal integrity. Second, pure PTFE can exhibit cold flow under high continuous load; filler materials help mitigate this. Third, it should not be used in applications involving molten or dissolved alkali metals (e.g., sodium, potassium) or fluorine gas under specific conditions. Finally, for applications with extremely high PV values or severe abrasion, a detailed engineering review is recommended to ensure suitability.
