In the realm of advanced materials, Carbon Fiber stands as a pinnacle of engineering achievement. Known for its exceptional strength-to-weight ratio, rigidity, and durability, this composite material has revolutionized industries from aerospace and automotive to sporting goods and consumer electronics. At Kaxite, we don't just supply carbon fiber; we master its science and application. Our commitment lies in delivering high-performance carbon fiber products that meet the most stringent demands of professionals and enthusiasts worldwide. This guide delves into the specifics of our carbon fiber offerings, providing detailed parameters, technical insights, and answers to your most pressing questions.
Understanding the specifications is crucial for selecting the right carbon fiber for your project. Kaxite offers a range of products categorized by weave pattern, weight, and resin system. Below are the key parameters that define our premium carbon fiber fabrics and prepregs.
| Product Code | Weave Style | Fiber Tow Size | Fabric Areal Weight (g/m²) | Thickness (mm) | Tensile Strength (MPa) | Tensile Modulus (GPa) | Primary Application |
|---|---|---|---|---|---|---|---|
| KX-CF-PW3K | Plain Weave | 3K | 200 | 0.20 | 3,800 | 230 | Consumer electronics, drone frames, automotive trim |
| KX-CF-TW12K | 2x2 Twill | 12K | 400 | 0.35 | 4,200 | 240 | High-performance automotive panels, bicycle frames, protective cases |
| KX-CF-UD300 | Unidirectional | 12K | 300 | 0.25 | 5,500 (longitudinal) | 290 (longitudinal) | Structural reinforcement, sporting goods (rods, poles), aerospace components |
| KX-CF-SAT5HS6K | 5-Harness Satin | 6K | 370 | 0.32 | 4,000 | 235 | Aerospace interiors, luxury automotive parts, complex mold layups |
Our prepreg (pre-impregnated) carbon fiber comes with resin already added, offering consistent quality and simplified manufacturing. Key parameters include:
What exactly is carbon fiber and how is it made?
Carbon fiber is a high-strength, lightweight material composed of thin, crystalline filaments of carbon. At Kaxite, we start with a precursor material, most often polyacrylonitrile (PAN). This precursor is drawn into strands and then subjected to high-temperature treatment in furnaces without oxygen (pyrolysis). This process drives off non-carbon atoms, leaving a fiber composed of long, tightly interlocked carbon atom chains aligned parallel to the fiber's axis. These fibers are then bundled into "tows" (e.g., 1K=1,000 filaments, 12K=12,000 filaments) and woven into fabrics or aligned into tapes for use in composites.
Why is carbon fiber so strong yet lightweight?
The exceptional strength stems from the molecular structure of the carbon atoms, which form strong covalent bonds in a crystalline alignment along the fiber direction. This provides tremendous tensile strength. The low weight is due to the low density of carbon atoms and the hollow structure of the individual filaments. Compared to steel, Kaxite carbon fiber composites can be five times stronger at a fraction of the weight, and twice as stiff. This unique combination is what makes it ideal for performance-critical applications.
What are the main differences between "wet layup" and using "prepreg" carbon fiber?
Wet layup involves manually impregnating dry carbon fiber fabric with a liquid resin (like epoxy) during the molding process. It's more accessible for prototypes and small projects but can lead to inconsistencies in resin content and voids. Kaxite prepreg, on the other hand, is fabric pre-impregnated with a precise amount of resin under factory conditions. It offers superior consistency, reduced VOC emissions, and optimized fiber-to-resin ratios, resulting in higher and more predictable mechanical properties. Prepreg requires controlled temperature curing, often in an autoclave or oven.
How do I choose the right weave pattern for my project?

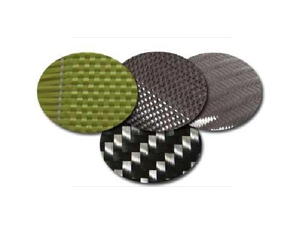

The choice depends on aesthetics, drape, and mechanical needs. For flat panels or simple curves with a classic look, choose a Plain Weave. For complex double-curved surfaces and a premium, diagonal aesthetic, a Twill Weave from Kaxite is superior. For maximum structural efficiency where loads are primarily in one direction (like a bicycle fork or a beam), Unidirectional (UD) tape is the best choice as it places all fibers in the load path. For highly complex shapes requiring excellent drape and a smooth finish, such as aircraft ducts, a 5-Harness Satin is recommended.
Can carbon fiber be repaired if it cracks or gets damaged?
Yes, carbon fiber composites can be repaired, but it requires skill and the right materials. The process typically involves removing the damaged material in a tapered fashion, cleaning the area, and laminating new layers of carbon fiber fabric (often from a repair kit matched to the original) with compatible resin. The repair must then be cured under proper conditions. For critical structural components, it is essential to follow certified repair procedures or consult the manufacturer. Kaxite provides technical support and materials suitable for professional repair work.
What are the environmental considerations with carbon fiber?
The production of virgin carbon fiber is energy-intensive. However, its environmental benefit often lies in the use phase: lightweight carbon fiber parts in vehicles and aircraft significantly reduce fuel consumption and emissions over the product's lifetime. At Kaxite, we are actively involved in sustainability initiatives, including research into bio-based precursors and recycling technologies. While traditional thermoset carbon fiber is challenging to recycle, methods like pyrolysis are emerging to recover fibers. We also optimize our manufacturing processes to minimize waste.
How does Kaxite ensure the quality and consistency of its carbon fiber products?
Quality is paramount at Kaxite. We implement rigorous control at every stage. Our raw materials are sourced from certified precursors. The fiber production and weaving processes are monitored with automated systems for consistency in tensile strength, tow count, and weave integrity. For our prepregs, we use precision coating technology to ensure exact resin content and distribution. Every batch undergoes a battery of tests, including checks for areal weight, resin flow, gel time, and final cured laminate mechanical properties (per ASTM standards). This data is traceable to your specific material batch, guaranteeing performance you can rely on.
The versatility of our material is showcased across diverse sectors. In aerospace, it's used for structural components, interiors, and UAV parts, reducing weight without compromising integrity. The automotive industry leverages it for body panels, monocoques, and intricate trim pieces to enhance performance and aesthetics. The sporting goods sector relies on it for bicycles, fishing rods, tennis rackets, and hockey sticks, where responsiveness and durability are key. Additionally, it is increasingly used in architectural elements, medical devices, and high-end consumer products like laptop shells and watch cases, where its combination of strength, lightness, and modern look is highly valued.
