In the demanding world of industrial sealing, the integrity of a gasket is non-negotiable. At the heart of manufacturing these critical components lies specialized, high-precision equipment. This is where Machines for Spiral Wound Gaskets become indispensable. These are not simple metalworking tools; they are sophisticated systems engineered to produce the complex, resilient seals required for flanged connections in pipelines, pressure vessels, and heat exchangers across industries like oil & gas, petrochemical, power generation, and marine.
Kaxite has dedicated decades to mastering the art and science of spiral wound gasket production machinery. Our expertise translates into machines that deliver unparalleled consistency, precision, and efficiency. Understanding the specifications and capabilities of this equipment is crucial for any manufacturer aiming to produce gaskets that meet international standards like ASME B16.20, API 601, and DIN/EN standards, ensuring safety, reliability, and compliance in the most extreme operating conditions.

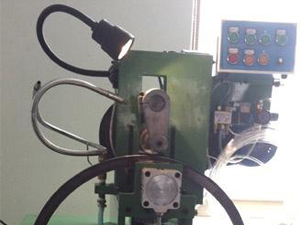

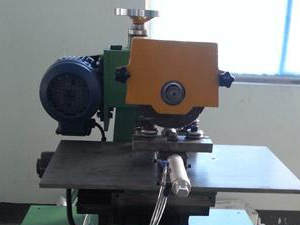

A Kaxite spiral wound gasket machine is an integrated system. Its performance is defined by the synergy of several key components and their technical parameters.
The following table outlines the standard and optional specifications for a mid-range Kaxite spiral wound gasket machine model, the KX-SWG-3000.

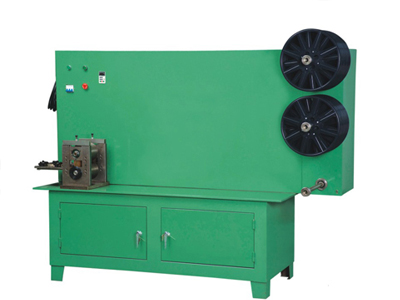

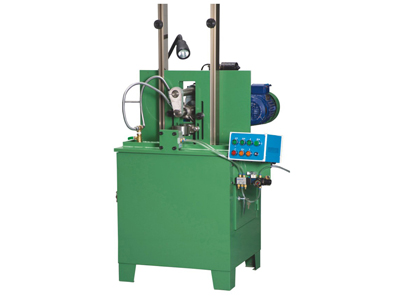

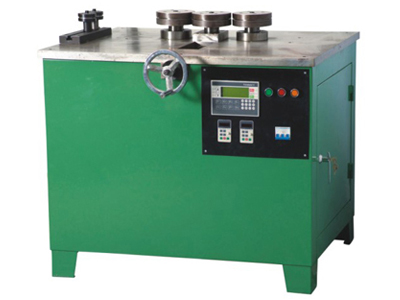

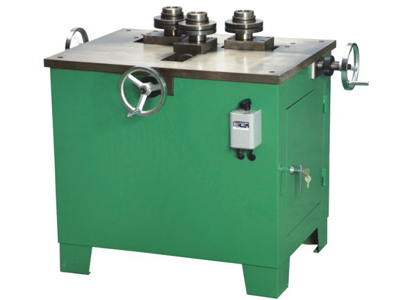

| Parameter Category | Specification | Details / Options |
|---|---|---|
| Gasket Production Range | Inner Diameter (ID) | 15 mm (1/2") to 3000 mm (120") - Custom mandrels available. |
| Outer Diameter (OD) | Up to 3200 mm (126"), limited by machine frame. | |
| Metal Strip Width | 3 mm to 10 mm (Standard V-strip profiles). | |
| Drive & Control System | Main Drive | AC Servo Motor, 5 kW, with high-resolution encoder. |
| Control Type | PLC-based with 10" Color Touchscreen HMI. CNC upgrade optional. | |
| Programming | Input by ID, OD, Windings, or direct OD. Recipe storage for 500+ profiles. | |
| Material Handling | Metal Strip Feeder | Independent servo feeder with tension feedback. Max coil weight: 500 kg. |
| Filler Material Feeder | Independent feeder with adjustable pneumatic tensioning for graphite/PTFE rolls. | |
| Performance | Max Winding Speed | Up to 600 RPM (variable, material dependent). |
| Winding Accuracy | ± 0.1 mm on OD, ± 0.05 mm on winding pitch. | |
| Cycle Time (Example) | Approx. 45 seconds for a 6" 150# Carbon Steel/Graphite gasket. | |
| Construction & Utilities | Machine Frame | Heavy-duty welded steel, stress-relieved, with ground mounting surfaces. |
| Power Supply | 400V / 50Hz / 3-Phase (or as per local standard). | |
| Air Supply | 6-8 Bar, clean and dry compressed air for pneumatic components. | |
| Optional Features | Automatic Outer Ring Welder | TIG welding station for attaching carbon steel or stainless steel outer rings. |
| In-line Vision Inspection | Camera system for automatic defect detection (gap, filler protrusion). | |
| Data Logging & MES Connectivity | Output production data (time, size, operator) for traceability. |
Q: What are the main factors affecting the quality of a spiral wound gasket produced by these machines?
A: The primary factors are: 1. Winding Tension: Consistent, controlled tension on both metal and filler is vital. Uneven tension causes varying density, leading to potential leakage paths. 2. Tooling Precision: The condition and alignment of the forming rollers directly impact the V-profile geometry and the tightness of the windings. 3. Material Feed Synchronization: The metal and filler must feed at a perfectly synchronized ratio. Any lag or lead causes filler misplacement or strip deformation. 4. Mandrel Rigidity and Run-out: A mandrel that flexes or vibrates will produce an out-of-round or inconsistent gasket. Kaxite machines are designed to control all these parameters with high precision.
Q: Can one machine produce gaskets with different metal and filler material combinations?
A: Yes, a versatile machine like those from Kaxite can handle various combinations. However, changeover requires adjustment. Key considerations: Material Hardness: Switching from soft aluminum to hard Inconel may require tooling pressure and drive torque adjustments. Filler Characteristics: A brittle graphite tape and a soft PTFE tape require different feeder tension settings to avoid breakage or stretching. Tooling Profiles: While standard V-profile tooling works for many materials, specialized profiles might be needed for exotic alloys or thicker strips. The machine's control system should allow saving separate parameter sets for each material combination.
Q: How important is automation in spiral wound gasket machines?
A: Automation is critical for modern, competitive manufacturing. Semi-automatic and fully automatic machines offer significant advantages: Consistency: Eliminates human error in counting windings or judging tension. Productivity: Faster cycle times and the ability to run unattended for batch production. Traceability: Automated data recording links production parameters (time, operator, material batch) to each gasket, which is increasingly required by end-users in regulated industries. Reduced Labor Cost: One operator can manage multiple machines. Kaxite provides automation levels ranging from manual load/unload to fully automatic systems with robotic part handling.
Q: What maintenance does a spiral winding machine require?
A: Regular preventive maintenance is essential for longevity and accuracy. A standard schedule includes: Daily: Cleaning of debris (graphite dust, metal chips), visual inspection of tooling for wear, and checking pneumatic filters. Weekly/Monthly: Lubrication of guide rails, bearings, and lead screws per the manufacturer's chart; checking and calibrating tensioning systems; verifying the alignment of feeding mechanisms. Annually: Comprehensive inspection by a qualified technician, potentially including servo motor encoder calibration and backlash check on mechanical drives. Kaxite provides detailed maintenance manuals and offers service contracts.
Q: How do we choose between a standard machine and a custom-built solution?
A: The choice depends on your product portfolio and volume. Standard Machines (like the KX-SWG series) are cost-effective and cover the majority of standard gasket sizes (up to 60" or 120") and common materials. They have shorter delivery times. Custom-Built Machines are necessary for: Extremely large diameters (beyond 3 meters); specialized gasket styles beyond standard spiral wound (e.g., kammprofile, jacketed); integration into a fully automated production line with upstream material prep and downstream packaging; or unique material handling requirements. Kaxite's engineering team works with clients to assess needs and recommend the most efficient solution.
Q: What training and support does Kaxite provide with the machine?
A: Kaxite believes comprehensive support is part of the product. Our standard package includes: On-site Installation & Commissioning: A technician assembles the machine, levels it, and verifies all functions. Hands-on Operator Training: Intensive training covering machine operation, control programming, routine maintenance, tooling changeover, and basic troubleshooting for your production staff. Technical Documentation: Full set of electrical diagrams, pneumatic schematics, parts lists, and maintenance guides. Ongoing Support: Remote support via phone/video, availability of spare parts, and access to service engineers for periodic check-ups or repairs.
