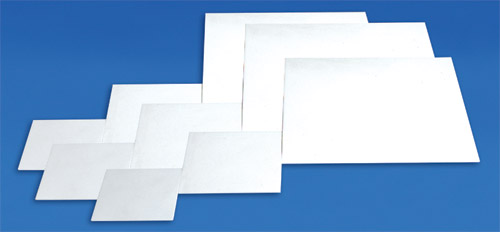

PTFE Resin Molded Sheet

Discover Kaxite Sealing's PTFE Resin Molded Sheet—a durable, high-performance sealing solution ideal for industrial and engineering applications. Crafted with advanced PTFE resin, it offers superior chemical resistance, low friction, and thermal stability, ensuring reliability in demanding environments like machinery or chemical processing. This sheet provides long-lasting protection, reduces maintenance costs, and enhances efficiency. Perfect for engineers, manufacturers, and industries seeking resilient materials. Elevate your projects with our unique, precision-molded design that outperforms alternatives. Experience the confidence of reliable sealing today!

Send Inquiry

Product Description

With professional PTFE Resin Molded Sheet factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China PTFE Resin Molded Sheet manufacturers and suppliers.

[ Features ]

PTFE molded sheet is manufactured by molding method with PTFE granular resin.
PTFE is the most chemical resistance of all known plastics. It does not age. It has the lowest coefficient of friction of all known solid materials and a wide range of practicable temperature from -180%°C - +260°C.

[ Specifications ]

Length(mm)×Width(mm)	Thickness(mm)
Length(mm)×Width(mm)	Nominal	Tolerance
150×150	1.0-30	±0.30-±0.50
250×250	1.5-30	±0.30-±0.50
300×300	1.5-30	±0.30-±0.50
450×450	1.5-30	±0.30-±0.50
600×600	2-30	±0.30-±0.50
800×800	3-30	±0.30-±0.50
1000×1000	3-30	±0.30-±0.50
1200×1200	3-30	±0.30-±0.50
1000×2000	5-35	±0.30-±0.60
1500×1500	5-30	±0.30-±0.50
1800×1800	8-30	±0.30-±0.50
2000×2000	8-30	±0.30-±0.50

[ Main properties ]

Properties	Unit	Result
Apparent density	g/cm³	2.10-2.30
Tensile strength (min)	MPa	15.0
Ultimate elongation (min)	%	150
Dielectric strength(min)	KV/mm	10

[ Applications ]

Lining Bearing pads, seals, and electrical insulation.

Hot Tags: PTFE Resin Molded Sheet Manufacturer, PTFE Sheet Wholesale, High Quality PTFE Resin Sheet
